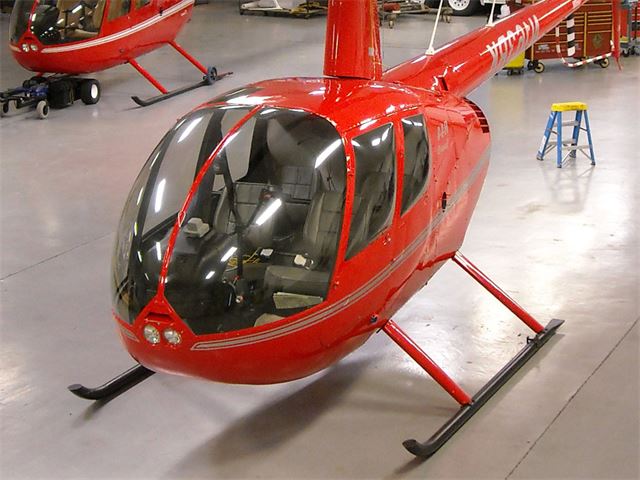

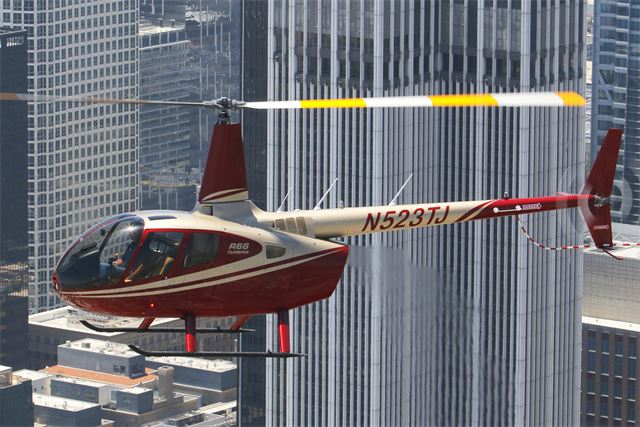

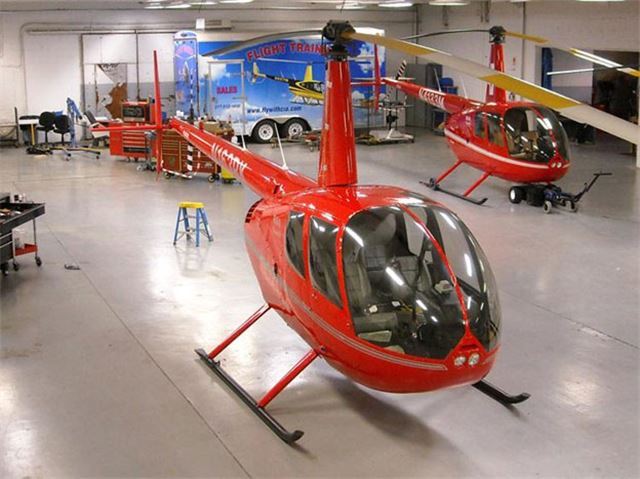

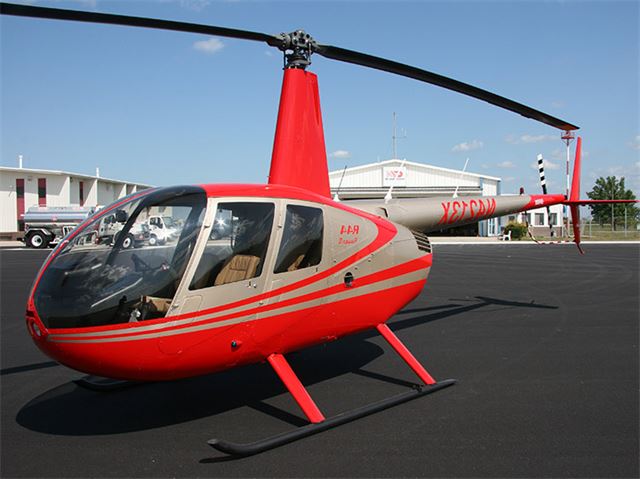

2019 Robinson Turbine R66

The five-seat R66 Turbine helicopter is reliable, economical and easy to maintain. R66s have a two-bladed rotor system, T-bar cyclic and the latest in Robinson technology including streamlined instrument panels, energy absorbing seats and crashworthy bladder fuel tanks. What distinguishes the R66 is a spacious 300 lb capacity baggage compartment and the Rolls Royce RR300 turboshaft engine. The RR300 engine operates on readily available Jet A fuel and offers increased reserve power, additional payload and improved altitude performance. Hydraulic controls eliminate feedback forces and provide responsive handling.

Outfitted with pop-out floats, the R66 Turbine Marine offers an additional level of safety for over-water travel. Designed for emergencies, the six-chamber floats inflate within 2-3 seconds of activation. The installation adds approximately 65 pounds to the helicopter’s empty weight. When not in use, floats roll-up and stow in protective covers along the aircraft’s landing skids. The streamlined, low profile design minimizes drag and allows for easy entry and exit of the cabin.

With continued focus on safety, the R66 meets the latest FAA crashworthiness regulations

Customize Your Aircraft
Please click HERE and submit our short form before accessing the manufacturer's website.



Specifications & Dimensions

Helicopter 2019 Robinson Turbine R66
Engine Rolls Royce RR300 Turbine
Horsepower 300 shp turboshaft; derated to 270 shp for takeoff and 224 shp continuous
Maximum Gross Weight 2700 lb (1225 kg)
Approximate Empty Weight (including oil & standard avionics) 1280 lb (581 kg)
Standard Fuel 493 lb (224 kg)
Pilot, Passengers, and Baggage (with standard fuel) 927 lb (420 kg)
Cruise Speed at Maximum Gross Weight up to 110 kts (204 km/h)
Maximum Range (no reserve) approximately 350 nm (650 km)
Hover Ceiling IGE over 10,000 ft
Hover Ceiling OGE over 10,000 ft
Rate of Climb over 1000 fpm
Maximum Operating Altitude 14,000 ft
Electrical System 28 volt


Standard Equipment

  • Hydraulic power controls
  • RPM throttle governor
  • Throttle correlator
  • Main and auxiliary crashworthy fuel bladder tanks
  • Engine oil filter and quick drain
  • Engine muffler
  • Cabin heater and defogger
  • Carbon monoxide detector
  • Rotor brake
  • Intercom switches
  • Avionics master switch
  • Tinted windows
  • Fabric velour seats
  • 3-point shoulder harnesses
  • Pilot-side adjustable pedals
  • Door locks
  • Sound damping headliner
  • Underseat storage
  • Belly hardpoint
  • LED anti-collision and navigation lights
  • Dual HID landing lights
  • LED panel and map lights
  • Tow cart adapter
  • Ground handling wheels
  • Rotor blade tie downs
  • Windshield cover
  • Travel bag
  • Airspeed indicator
  • Altimeter
  • Rotor/engine dual tachometer
  • Manifold pressure gage
  • Vertical speed indicator
  • Magnetic compass
  • Cylinder head temperature gage
  • Oil temperature and pressure gages
  • Fuel gages
  • Ammeter
  • Digital OAT gage/voltmeter
  • Hourmeter
  • Quartz clock

Optional Equipment

  • Air conditioning
  • Leather seats
  • Bracket for fire extinguisher
  • Observation bubble window (each door)
  • Heated pitot tube
  • Metallized upper sheave
  • Extra corrosion protection (included with Clippers)
  • Five-point shoulder harness system (front seats)
  • Red LED forward strobe
  • White LED forward strobe
  • External power receptacle
  • Garmin GDU 700L TXI PFD/MFD
  • Garmin GDU 1060 TXI PFD/MFD
  • Helicopter Synthetic Vision Technology Card
  • Chart View Enablement Cards (G500H and GTN650/750)
  • SAS/Autopilot Genesys HeliSAS requires Garmin GDU or Aspen PFD
  • PFD, Aspen Avionics EFD1000H Pilot (with slaved D.G.)
  • PFD, Aspen Avionics EFD1000H Pro with HSI (requires GPS)
  • MFD, Aspen Avionics EFD500H (Helicopter) (requires GPS)
  • Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid
  • Artificial Horizon, Mid-Continent 4300 with Slip Skid
  • Directional Gyro Mid-Continent 3300
  • Turn Coordinator
  • Vertical Compass PAI-700 (replaces standard compass)
  • Digital Chronometer Davtron 800 (replaces standard clock)
  • Millibar Altimeter (replaces standard in-Hg)

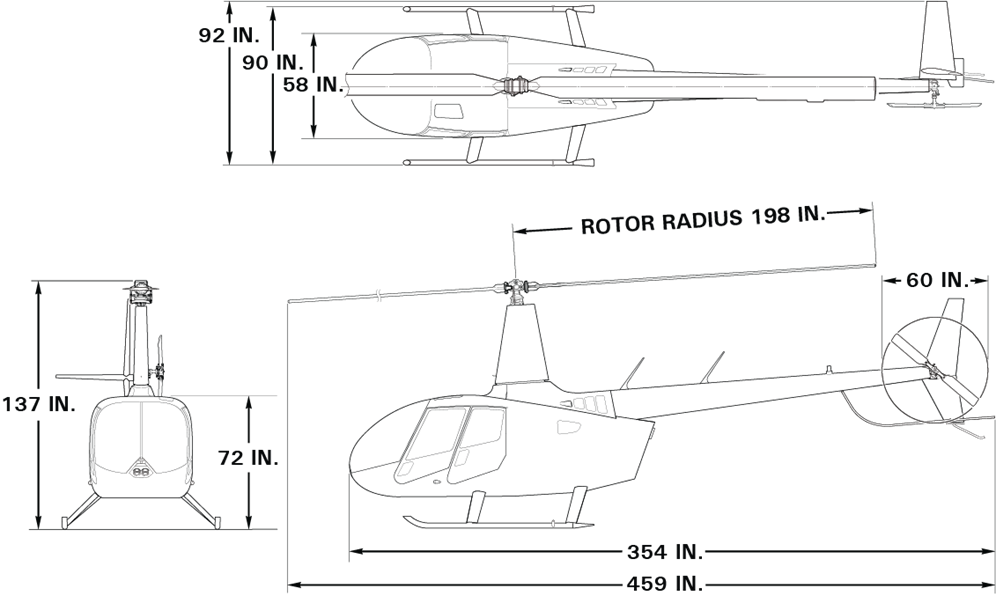

2019 Robinson Turbine R66 Dimensions
