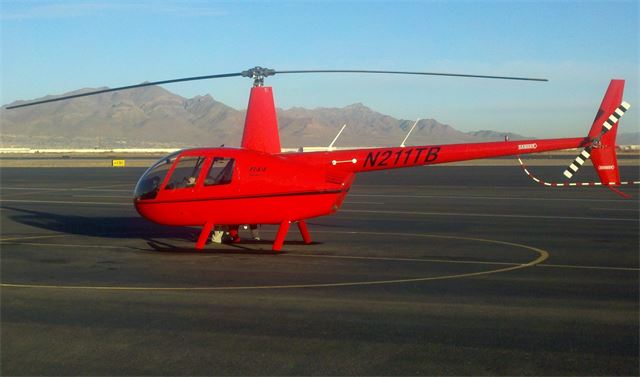

2019 Robinson R44 Raven I

Four-seat R44 Raven I and Clipper I helicopters are high performing, reliable and easy to maintain. R44s have a two-bladed rotor system, T-bar cyclic and the latest in Robinson technology including streamlined instrument panels and crashworthy bladder fuel tanks.

The R44’s aerodynamic fuselage optimizes airspeed and fuel economy. Hydraulic controls eliminate feedback forces and provide responsive handling. A low tail-rotor tip speed, newly designed muffler and large cambered tail reduce flyover noise.

Raven I and Clipper I helicopters are powered by Lycoming’s O-540 carbureted engine with carburetor heat assist that automatically adjusts carburetor heat enhancing safety and reducing pilot workload.

Customize Your Aircraft
Please click HERE and submit our short form before accessing the manufacturer's website.



Specifications & Dimensions

Helicopter 2019 Robinson R44 Raven I
Engine Lycoming O-540, six cylinder, carbureted
Horsepower Derated to 225 for takeoff and 205 continuous
Maximum Gross Weight 2400 lb (1089 kg)
Approximate Empty Weight (including oil & standard avionics) 1450 lb (658 kg)
Standard Fuel 177 lb (80 kg)
Auxiliary Fuel 102 lb (46 kg)
Pilot, Passengers, and Baggage (with standard fuel) 773 lb (351 kg)
Cruise Speed at Maximum Gross Weight up to 108 kts (200 km/h)
Maximum Range (no reserve) approx 300 nm (550 km)
Hover Ceiling IGE 6400 ft @ 2400 lb
Hover Ceiling OGE 4000 ft @ 2300 lb
Rate of Climb over 1000 fpm
Maximum Operating Altitude 14,000 ft
Electrical System 28 volt


Standard Equipment

  • Hydraulic power controls
  • RPM throttle governor
  • Throttle correlator
  • Carburetor heat assist
  • Main and auxiliary crashworthy fuel bladder tanks
  • Engine muffler
  • Cabin heater and defogger
  • Carbon monoxide detector
  • Rotor brake
  • Intercom switches
  • Avionics master switch
  • Tinted windows
  • Fabric velour seats
  • 3-point shoulder harnesses
  • Pilot-side adjustable pedals
  • Door locks
  • Sound damping headliner
  • Underseat storage
  • Belly hardpoint
  • LED anti-collision and navigation lights
  • Dual HID landing lights
  • LED panel and map lights
  • Tow cart adapter
  • Ground handling wheels
  • Rotor blade tie downs
  • Windshield cover
  • Travel bag

Optional Equipment

  • GPS Fleet Tracking Spidertracks S6
  • David Clark H10-13H (custom cord)
  • Bose A20 headset with Bluetooth
  • 6-pin jack for Bose headset (headset not included)
  • Aft seat dual USB charge ports
  • Accessories support bar with power plug and dual USB ports (pilot side)
  • Accessories support bar with power plug and dual USB ports (left side)
  • Additional mount with 1-inch ball
  • Additional mount with 1-1/2 inch ball
  • Seat back booster cushion
  • Eight-hole instrument panel
  • Leather seats
  • Engine priming system
  • Bracket for fire extinguisher
  • Observation bubble window (each door)
  • Heated pitot tube
  • Metallized upper sheave (replaces standard sheave)
  • Extra corrosion protection (included on Clipper)
  • Five-point shoulder harness system (front seats)
  • Red LED forward strobe
  • White LED forward strobe
  • Garmin GDU 700L TXi PFD/MFD
  • SAS/Autopilot Genesys HeliSAS (requires Aspen PFD Pro)
  • PFD, Aspen Avionics EFD1000H Pilot (with slaved D.G.)
  • PFD, Aspen Avionics EFD1000H Pro with HSI (requires GPS)
  • MFD, Aspen Avionics EFD500H (Helicopter) (requires GPS)
  • Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid
  • Artificial Horizon, Mid-Continent 4300 with Slip Skid
  • Directional Gyro Mid-Continent 3300
  • Turn Coordinator
  • Vertical Compass PAI-700 (replaces standard compass)
  • Digital Chronometer Davtron 800 (replaces standard clock)
  • Millibar Altimeter (replaces standard in-Hg)

2019 Robinson R44 Raven I Dimensions
